Product Specifications
Input Voltage: AC100-260V, 50/60Hz
Load Current: 2A (resistive load), 1A (inductive load)
Power Consumption: <2W
Display Type: LCD
Temperature Sensing Element: NTC thermistor
Humidity Range: 5-95% RH (non-condensing)
Temperature Control Accuracy: ±1°C
Button Type: Capacitive Touch
Temperature Setting: 05-35°C
Display Range: 0-99°C
Operating Temperature: 0-45°C
Protection Rating: IP30
Housing Material: Flame-retardant PC+ABS
Mounting Hole Spacing: 60mm (standard)

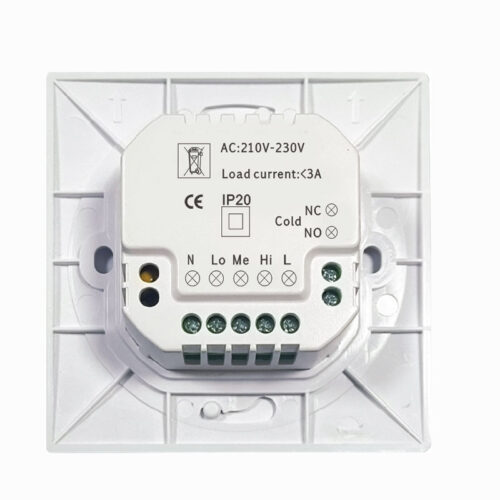

Terminal Blocks: Accepts 2 x 1.5mm² or 1 x 2.5mm² wires
Dimensions: 86 x 86 x 12 mm (width x height x depth)

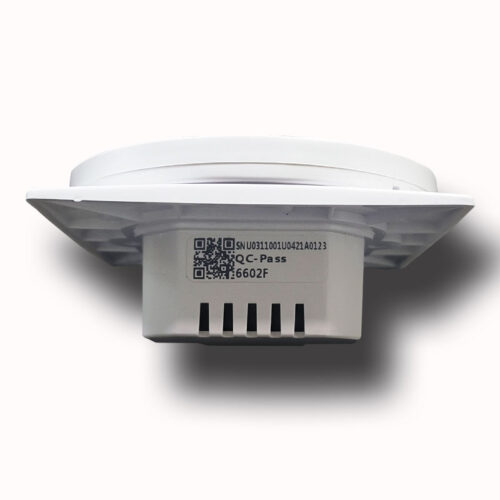

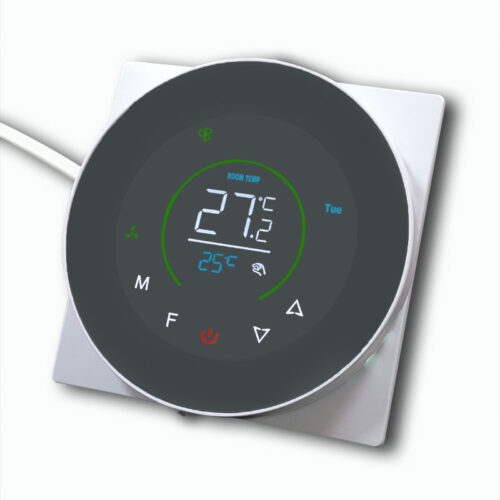

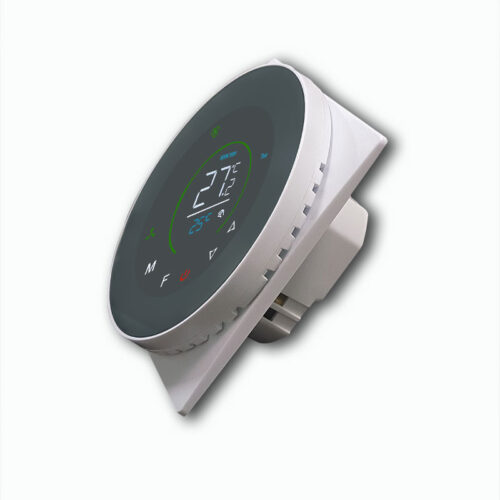

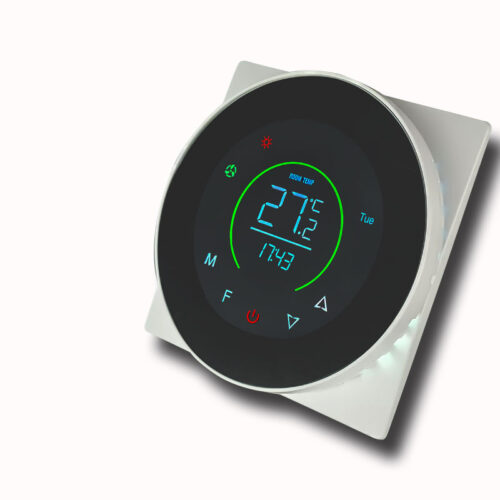

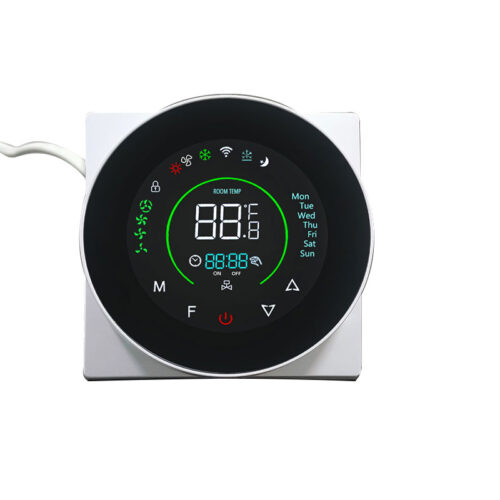

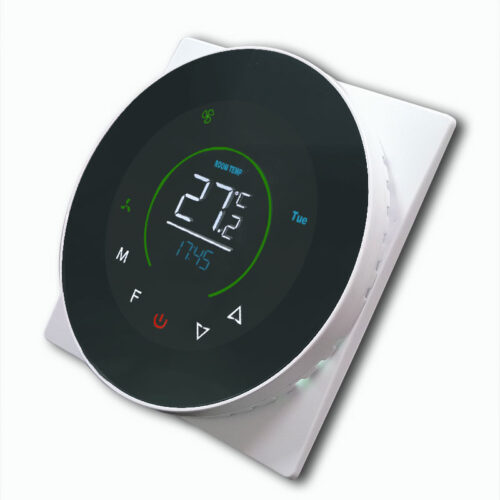

6602 fan intelligent temperature controller
This series of thermostats supports two-pipe, four-pipe, and combined heat and cooling fan coil systems, and is used to control the temperature of water or air systems. Simply touch a button to select the desired mode and set the desired temperature and air speed. The comparison between the ambient temperature and the set temperature controls the operating status of the fan coil unit and the motorized valve, motorized ball valve, or motorized damper at the terminal, achieving a comfortable ambient temperature and energy savings.
