Technical Specifications
Temperature Sensing Element: NTC Thermistor
Power Supply Voltage: AC180-260V, 50/60Hz
Control Accuracy: ±1°C
Power Consumption: <1W
Temperature Setting Range: 05-35°C
Load Power: <300W
Display Range: -9-99°C
Display: LCD
Operating Temperature: 0-45°C
Casing Material: PC+ABS (flame-retardant)
Humidity: 5-95% RH (non-condensing)
Mounting Hole Spacing: 60mm (standard)
Dimensions: 86*86*35mm

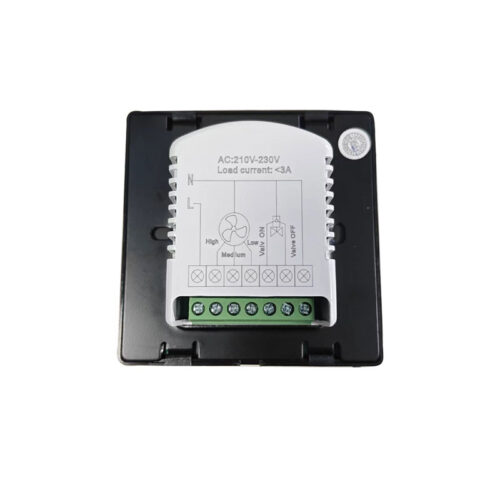

Terminal Blocks: Accepts 2*1.5mm² or 1*2.5mm² wires

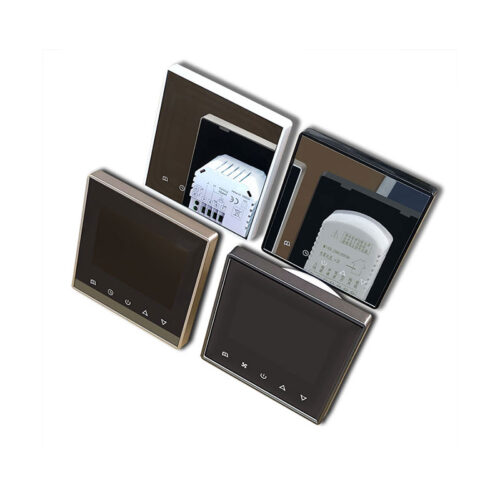

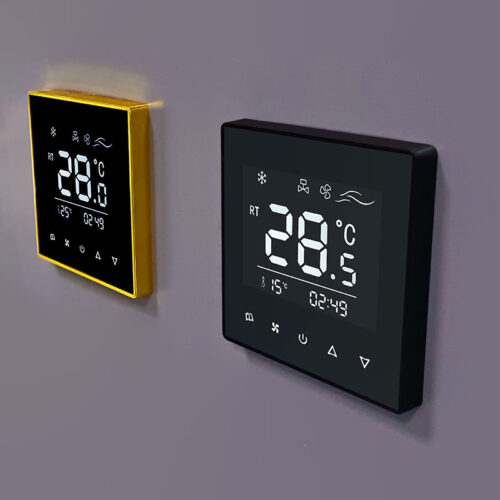

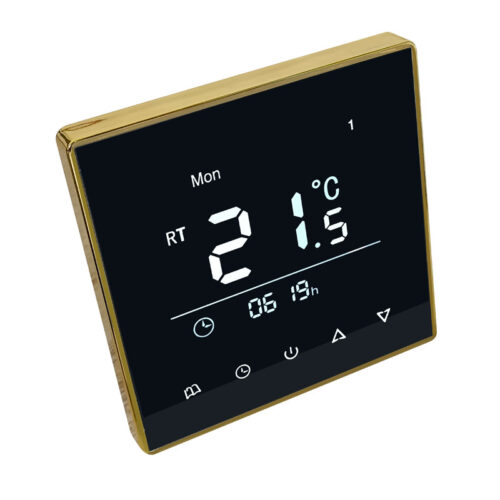

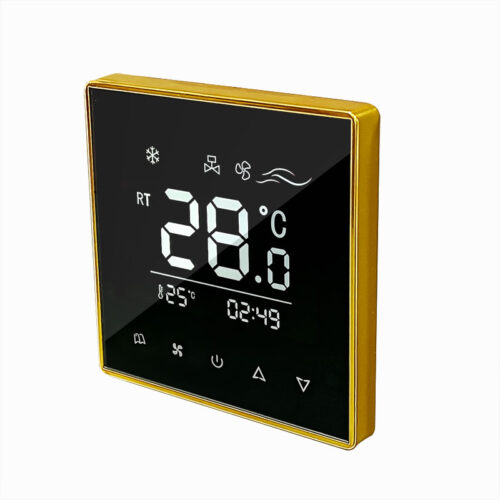

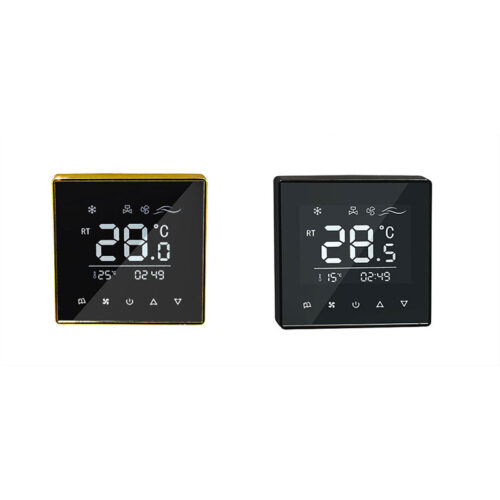

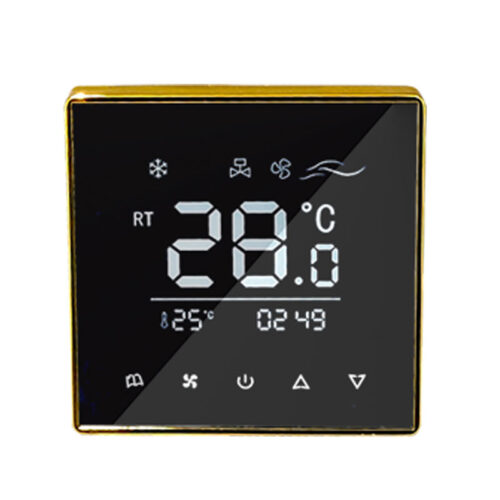

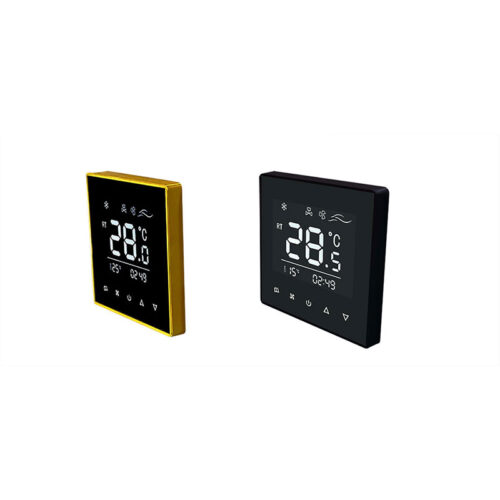

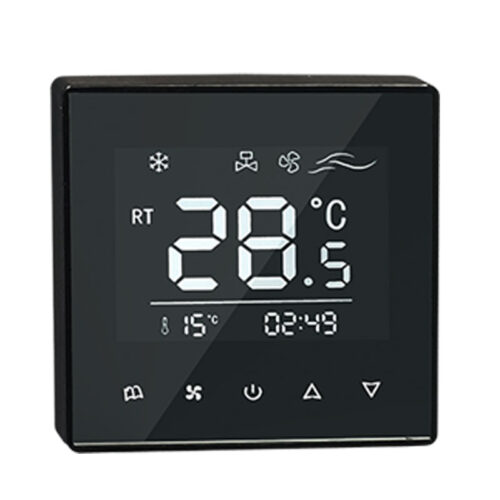

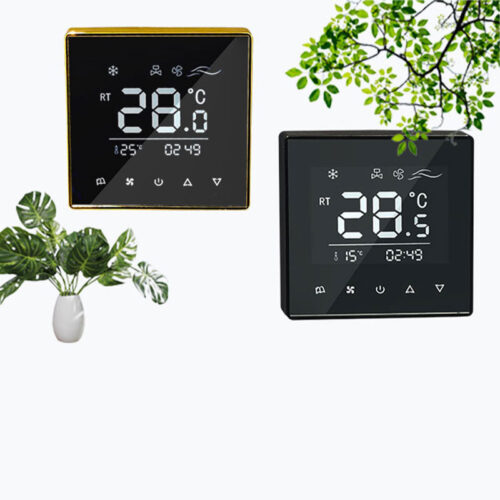

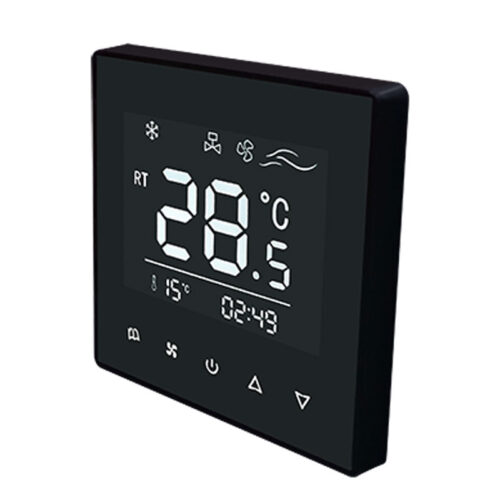

8818 Fan coil temperature controller
Fan coil unit thermostats are available in two-pipe and four-pipe configurations and are used for temperature control in water or air systems. By comparing the ambient temperature with the set temperature, they control the operating status of the fan coil unit, motorized valve, motorized ball valve, or damper at the end of the air conditioning system, achieving temperature regulation, comfort, and energy savings. The thermostats utilize microcomputer control technology and feature a large LCD display. The elegant design is user-friendly and allows users to select cooling, heating, and ventilation modes, as well as set the desired temperature and air speed, using touch buttons. (An infrared remote control is optional.)
