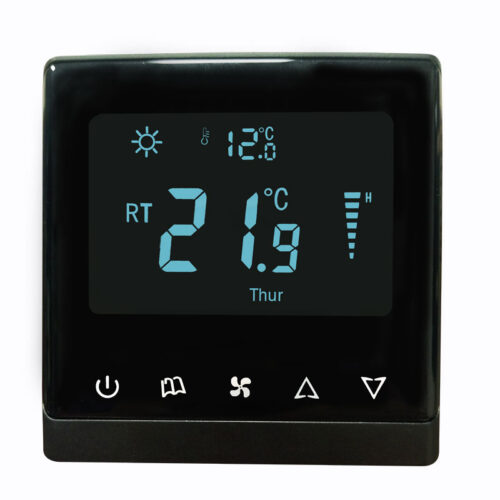

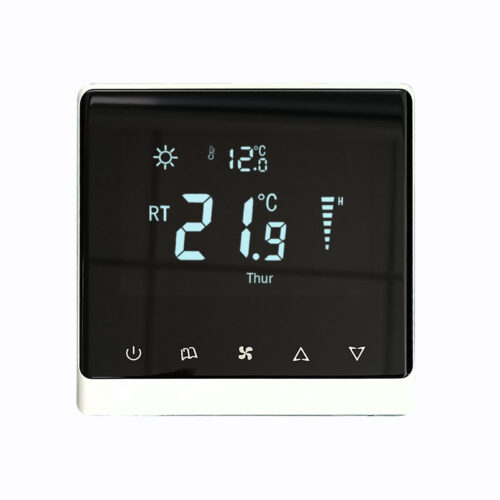

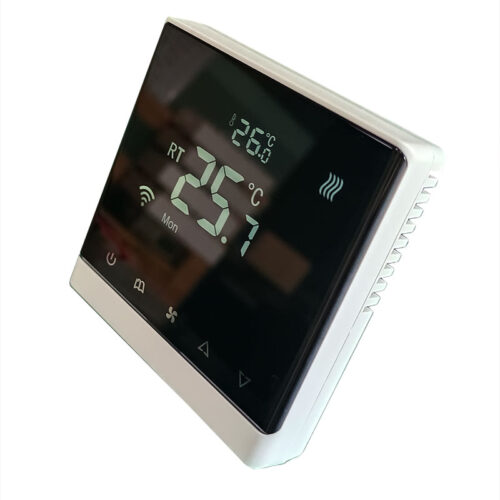

Through the comparison of the ambient temperature and set temperature, control the fan coil of the air conditioning system and electric valve, electric ball valve or air valve to achieve the purpose of adjusting the ambient temperature, comfort and energy saving.The thermostat adopts microcomputer control technology, large LCD display screen, elegant design, convenient and easy to use. By touching the button, the mode of cooling, heating and ventilation mode can be selected, as well as setting the required temperature and wind speed required.
Intelligent APP control (WiFi optional), install graffiti APP remote control temperature controller through the mobile phone, you can operate, control and check the operation of the mobile phone anytime and anywhere, and experience a better home life.(Optional infrared remote control, 485 communication)
Technical parameter
Input voltage: AC180~260V, 50 / 60Hz
Self-contained power consumption: <1.5W
Temperature sensing element: NTC thermistor
Temperature control accuracy: ± 1℃
Temperature control range: 05℃ ~35℃
Load power: <300W
Working environment: -5℃ ~50℃
Case material: PC + ABS flame retardant

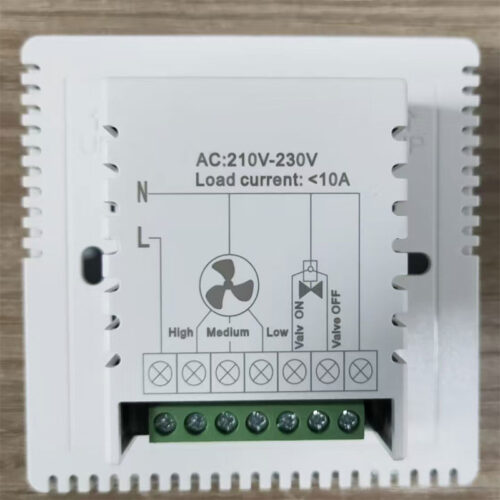

Terminal: wires that can connect to the 2*1.5mm ² or 1*2.5mm ²
Outline Size: 86mmX86mmX 44mm
Installation hole spacing: 60mm
