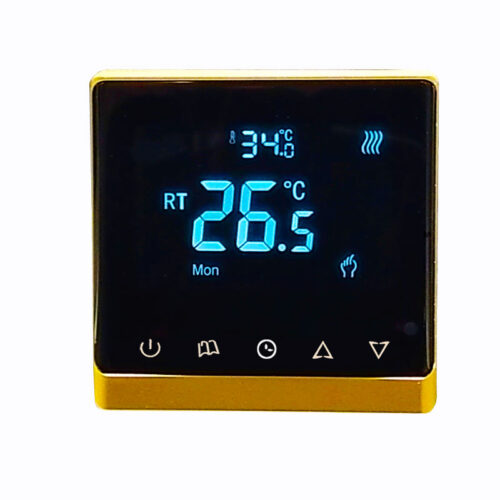

Heating touch thermostat 826RH+25AH

This floor heating system uses temperature-controlled sensing to compare room temperature with the set temperature to control its operation. This improves comfort while also saving energy. This series of thermostats features manual, programmable, and state memory functions for room-by-room temperature control and high-sensitivity touch buttons.

Technical Parameters:
Input Voltage: AC180-260V, 50/60Hz
Power Consumption: < 1.5W
Temperature Sensing Element: NTC
Temperature Control Accuracy: ±1°C
Temperature Control Range: 5°C–45°C

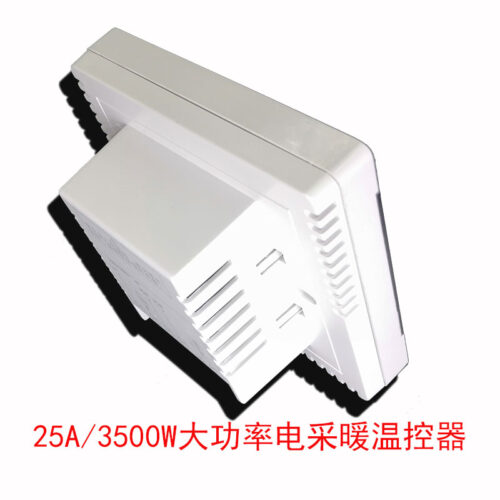

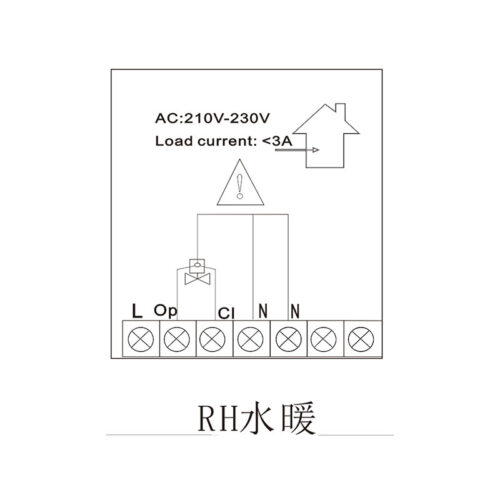

Load Current: 3A (Water Heating) / 16A, 25A (Electric Heating)
Dimensions: 86mm x 86mm x 25mm
Mounting Hole Spacing: 60mm

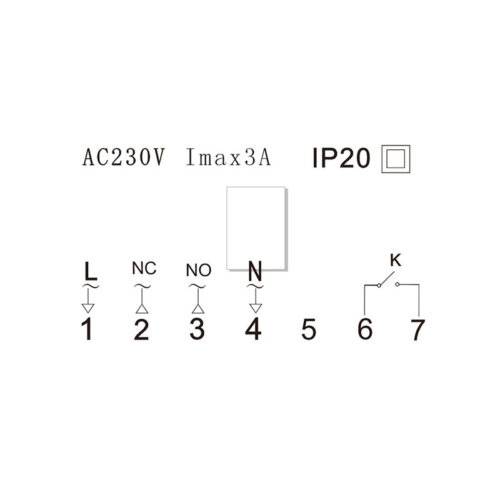

826H specification Instructions for installation
